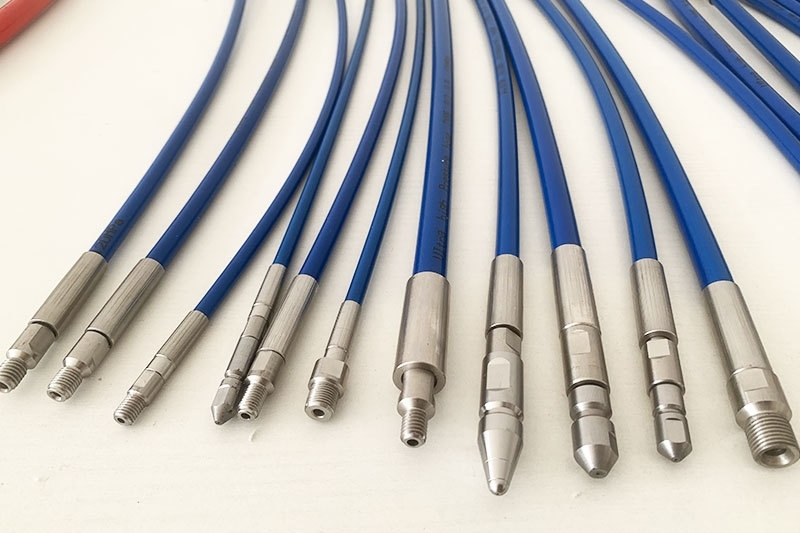

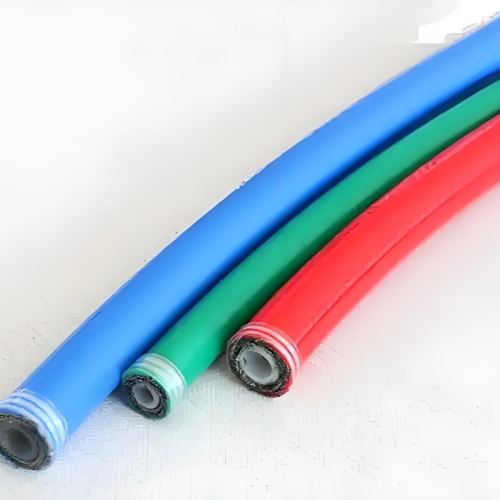

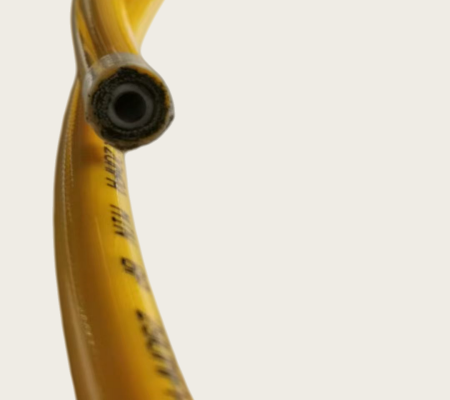

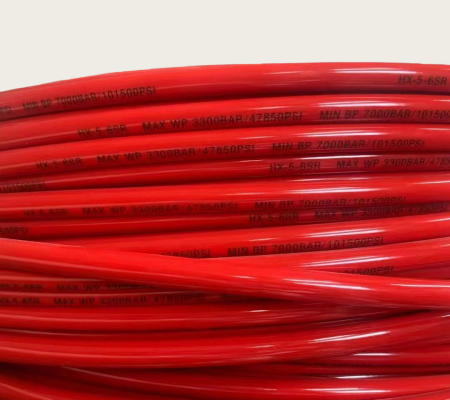

High Pressure Thermoplastic Hose

High pressure thermoplastic hose consists of a thermoplastic inner tube for hydraulic oil transfer, high strength steel wire reinforcements and a weather resistant cover, featuring lightweight, more durable and long storage period.

High Pressure Thermoplastic Hose
Technical Data

Construction: inner tube, reinforcement, cover and fireproof sleeve.

Inner Tube: thermoplastic inner tube

Reinforcement: high steel steel wire

Cover: heat resistant thermoplastic plastic

Outside: fireproof sleeve

Temperature: -40 °C to 100 °C (-40 °F to +212 °F)

Table 1: Specification of High Pressure Thermoplastic Hose
No. I.D. Reinforcement O.D. Max. Working Pressure Min. Burst Pressure Min. Bending Radius
mm mm MPa PSI MPa PSI mm
NH-3/2SP 3 2 8 120 17400 300 43500 95
NH-3/4SP 4 9.2 200 29000 500 72500 100
NH-4/2SP 4 2 10.8 120 17400 300 43500 105
NH-4/4SP 4 12.6 200 29000 5oo 72500 115
NH-4/6SP 6 14.4 260 37700 650 94250 130
NH-4/8SP 8 16.2 310 44950 775 112375 145
NH-5/2SP 5 2 12.2 120 17400 300 43500 115
NH-5/4SP 4 14 180 26100 450 65250 120
NH-5/6SP 6 16 280 40600 625 90625 130
NH-5/8SP 8 18 300 43500 750 108750 145
NH-6/2SP 6 2 13.6 110 15950 275 39875 125
NH-6/4SP 4 15.6 170 24650 425 61625 140
NH-6/6SP 6 17.6 230 33350 575 83375 155
NH-6/8SP 8 19.6 280 40600 700 101500 170
NH-8/2SP 8 2 16.2 100 14500 250 36250 155
NH-8/4SP 4 18.2 160 23200 400 58000 175
NH-8/6SP 6 20.2 220 31900 550 79750 195
NH-8/8SP 8 22.2 260 37700 650 94250 210
NH-10/2SP 10 2 19 100 14500 250 36250 180
NH-10/4SP 4 21.4 160 23200 400 58000 200
NH-10/6SP 6 23.8 220 31900 550 79750 220
NH-12/2SP 12 2 21.2 80 11600 200 29000 190
NH-12/4SP 4 23.6 130 18850 325 47125 210
NH-12/6SP 6 26 180 26100 450 65250 230
NH-16/2SP 16 2 27 60 8700 150 21750 230
NH-16/4SP 4 29.5 100 14500 250 36250 260
NH-19/2SP 19 2 30 55 7975 220 31900 240
NH-19/4SP 4 32 95 13775 380 55100 265
NH-25/2SP 25 2 34.5 50 7250 200 29000 300
NH-25/4SP 4 36.5 85 12325 340 49300 300
NH-32/2SP 32 2 43.5 40 5800 160 23200 350
NH-32/4SP 4 46.5 60 8700 240 34800 350
Application

It is widely used in automotive industry, construction machinery, and mechanical machinery for hydraulic oil transfer. In addition, it has good resistant to oil, heat, high pressure, aging and impulse, and can be used as special hoses for high pressure spray painting and pressure washers.
