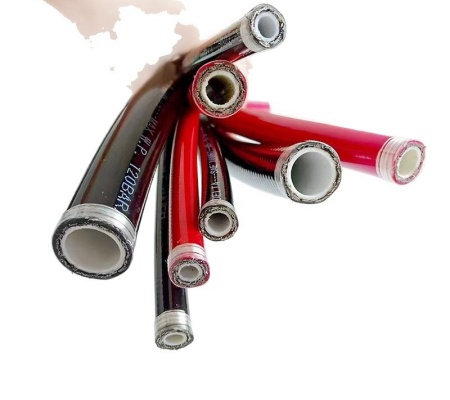

Thermoplastic hydraulic hose is thinner than rubber hose with the same inside diameter, it provides superior abrasion resistance, the polyester tube provides excellent low temperature, flexibility and resistance to a wide range of chemicals and petroleum base products. It is commonly used in construction equipment, lubrication lines and hydraulic lift equipment, pressure gauge and valve, and water jetting so on.
Tube: A thermoplastic inner tube of resistant to hydraulic fluids.
Reinforcement: Reinforced with suitable synthetic fiber.
Cover: A hydraulic fluid and weather resistant thermoplastic.
Temperature: -40 °C to +93 °C (-40 °F to +199.4 °F)
| Item | Size | SAE Size | I.D. | O.D. | Max. W.P. | Proof Pressure P.P. | Min. B.P. | Min. B.R. | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | dash | min. | max. | max. | MPa | psi | MPa | psi | MPa | psi | mm | kg/m | |
| TPHR8-01 | 5 | 3/16 | -3 | 4.6 | 5.4 | 14.6 | 35 | 5075 | 70 | 10150 | 140 | 20300 | 90 | 0.086 |
| TPHR8-02 | 6.3 | 1/4 | -4 | 6.2 | 7.0 | 16.8 | 35 | 5075 | 70 | 10150 | 140 | 20300 | 100 | 0.097 |
| TPHR8-03 | 10 | 3/8 | -6 | 9.3 | 10.3 | 20.3 | 28 | 4060 | 56 | 8120 | 112 | 16240 | 125 | 0.178 |
| TPHR8-04 | 12.8 | 1/2 | -8 | 12.3 | 13.5 | 24.6 | 24.5 | 3550 | 49 | 1705 | 98 | 14210 | 180 | 0.215 |
| TPHR8-05 | 16 | 5/8 | -10 | 15.5 | 16.7 | 29.8 | 19.2 | 2780 | 38.5 | 2280 | 77 | 11165 | 205 | 0.312 |
| TPHR8-06 | 19 | 3/4 | -12 | 18.6 | 19.8 | 33 | 15.7 | 2275 | 31.5 | 4565 | 63 | 9135 | 240 | 0.360 |
| TPHR8-07 | 25 | 1 | -16 | 25.0 | 26.4 | 38.6 | 14 | 2030 | 28 | 4060 | 56 | 8120 | 300 | 0.505 |
We are committed to providing high-quality rubber and plastic hose products and services.
With a professional team, advanced technology, and exceptional customer service,
we create lasting value and help our customers achieve remarkable growth.
Hebei Biaohui Rubber& Plastic Products Co., Ltd. is a manufacturer and supplier of rubber hoses, plastic hoses, and rubber products. The main products include TPU layflat hoses, industrial hoses, material conveying hoses, silicone hoses, PTFE hoses, stainless steel metal hoses, and rubber plastic products.
Our company's products are characterized by high pressure resistance, high temperature resistance,wear resistance, strong flexibility, good pulse performance, and easy maintenance. They are widely used in fields such as coal, petrochemicals, metallurgy, mining, construction, water conservancy engineering, electricity, agriculture, machinery, electronics, textiles, etc.
