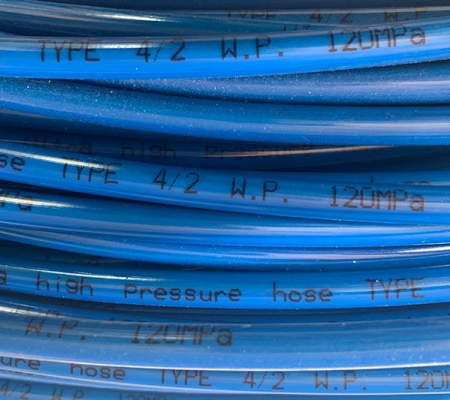

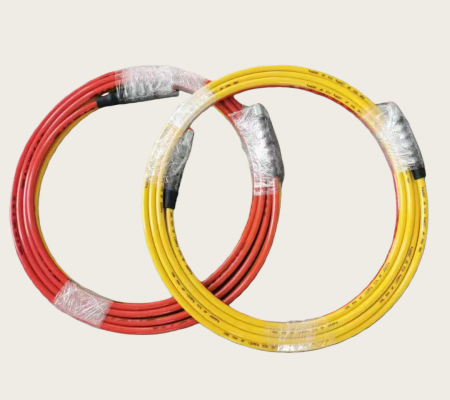

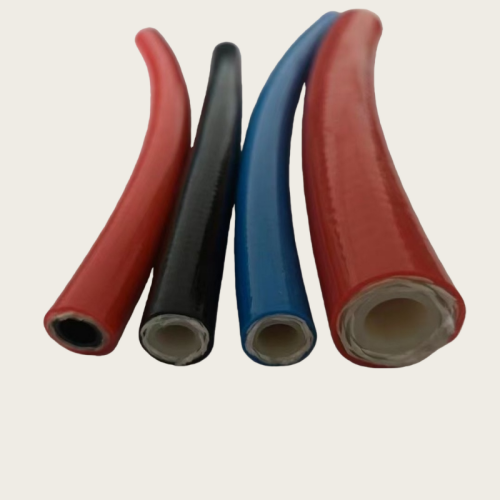

Thermoplastic hydraulic hose is thinner than rubber hose with the same inside diameter, it provides superior abrasion resistance, the polyester tube provides excellent low temperature, flexibility and resistance to a wide range of chemicals and petroleum base products. It is commonly used in construction equipment, lubrication lines and hydraulic lift equipment, pressure gauge and valve, and water jetting so on.
Tube: A thermoplastic inner tube of resistant to hydraulic fluids.
Reinforcement: Reinforced with suitable synthetic fiber.
Cover: A hydraulic fluid and weather resistant thermoplastic.
Temperature: -40 °C to +93 °C (-40 °F to +199.4 °F).
| Item | Size | SAE Size | I.D. | O.D. | Max. W.P. | Proof Pressure P.P. | Min. B.P. | Min. B.R. | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | dash | min. | max. | max. | MPa | psi | MPa | psi | MPa | psi | mm | kg/m | |
| TPHR7-01 | 5 | 3/16 | -3 | 4.6 | 5.4 | 11.4 | 21 | 3045 | 42 | 6090 | 84 | 12180 | 90 | 0.073 |
| TPHR7-02 | 6.3 | 1/4 | -4 | 6.2 | 7.0 | 13.7 | 19.2 | 2780 | 38.5 | 5580 | 77 | 11165 | 100 | 0.090 |
| TPHR7-03 | 8 | 5/16 | -5 | 7.7 | 8.5 | 15.6 | 17.5 | 2535 | 35 | 5075 | 77 | 10150 | 115 | 0.128 |
| TPHR7-04 | 10 | 3/8 | -6 | 9.3 | 10.3 | 18.4 | 15.7 | 2275 | 31.5 | 4565 | 63 | 9135 | 125 | 0.155 |
| TPHR7-05 | 12.5 | 1/2 | -8 | 12.3 | 13.5 | 22.5 | 14 | 2030 | 28 | 4060 | 56 | 8120 | 180 | 0.224 |
| TPHR7-06 | 16 | 5/8 | -10 | 15.5 | 16.7 | 25.8 | 10.5 | 1520 | 21 | 3045 | 42 | 6090 | 205 | 0.277 |
| TPHR7-07 | 19 | 3/4 | -12 | 18.6 | 19.8 | 28.6 | 8.7 | 1260 | 17.5 | 2535 | 35 | 5075 | 240 | 0.330 |
| TPHR7-08 | 25 | 1 | -16 | 25.0 | 26.4 | 36.7 | 7 | 1015 | 14 | 2030 | 28 | 4060 | 300 | 0.403 |
Size，working pressure and wall thickness can be customized as required。
