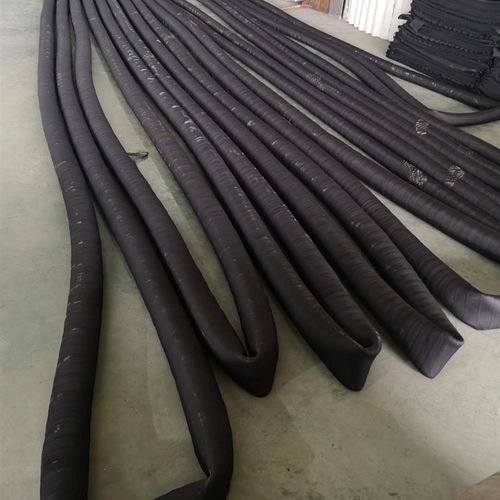

Rubber Bladder Tube Hose for Air Shafts Air Expanding Shaft

Rubber Bladder Tube Hose for Air Shafts Air Expanding Shaft

Features:

Inflatable shaft tuber

Material: natural rubber/butyl rubber

Applicable air pressure: 4-8kg (0.4-0.8MPa)

Features: The air shaft tube/airbag has excellent resilience, excellent toughness, and does not burst. The airbag is the key to the life of the inflatable shaft. The quality of the airbag is determined by the rubber grade and formula.

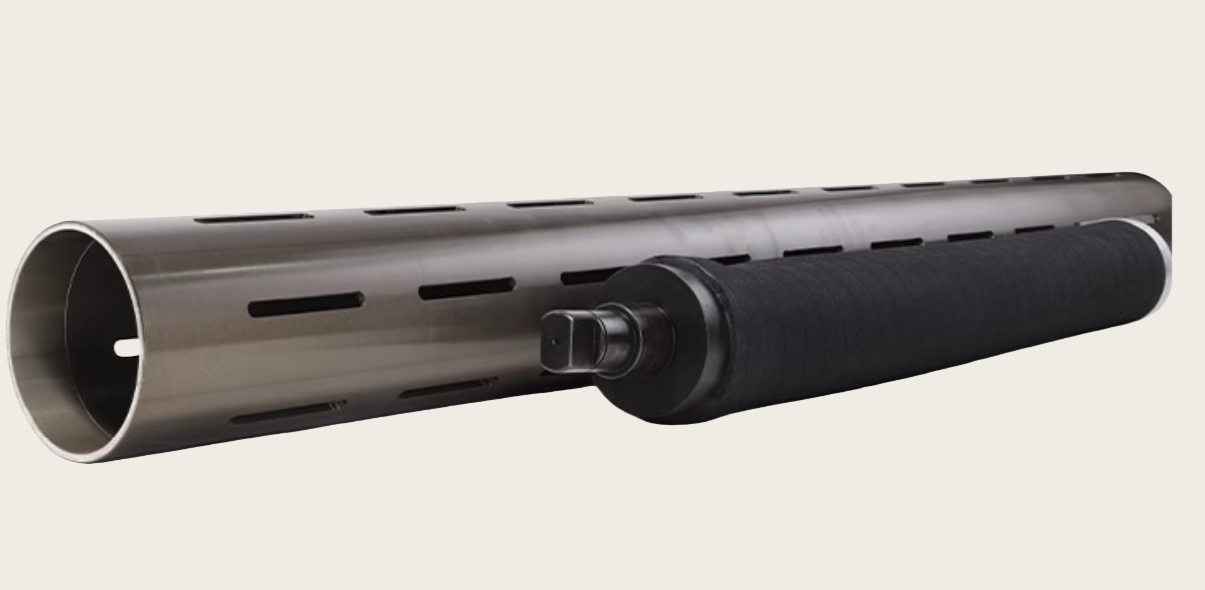

Application: It is used in the air shaft inside .
Rubber Bladder Tube Hose for Air Shafts Air Expanding Shaft

Specifications

ID*OD*Wall   Thickness(mm) Length(Meter/Circle) ID*OD*Wall   Thickness(mm) Length(Meter/Circle)
6*10*2 100Meters/Circle 42*50*4 40Meters/Circle
6*12*3 100Meters/Circle 42*51*4.5 40Meters/Circle
7*12*2.5 100Meters/Circle 42*52*5 40Meters/Circle
9*13*2 40Meters/Circle 44*54*5 40Meters/Circle
9*15*3 40Meters/Circle 45*55*5 40Meters/Circle
11*16*2.5 40Meters/Circle 48*58*5 40Meters/Circle
11&17*3 40Meters/Circle 48*59*5.5 40Meters/Circle
11*18*3.5 40Meters/Circle 51*61*5 40Meters/Circle
13*19*3 40Meters/Circle 51*63*6 40Meters/Circle
13*20*3.5 40Meters/Circle 57*67*5 40Meters/Circle
13*21*4 40Meters/Circle 60*70*5 40Meters/Circle
16*22*3 40Meters/Circle 64*74*5 40Meters/Circle
16*23*3.5 40Meters/Circle 76*86*5 40Meters/Circle
16*25*4.5 40Meters/Circle 76*88*6 40Meters/Circle
19*25*3 40Meters/Circle 85*95*5 10Meter/Circle
19*29*5 40Meters/Circle 85*97*6 10Meter/Circle
20*30*5 40Meters/Circle 89*99*5 10Meter/Circle
22*30*4 40Meters/Circle 89*100*5.5 10Meter/Circle
25*35*5 40Meters/Circle 89*101*6 10Meter/Circle
28*38*5 40Meters/Circle 95*106*5.5 10Meter/Circle
30*38*4 40Meters/Circle 102*112*5 10Meter/Circle
30*39*4.5 40Meters/Circle 102*113*5.5 10Meter/Circle
30*40*5 40Meters/Circle 102*114*6 10Meter/Circle
32*40*4 40Meters/Circle 108*120*6 10Meter/Circle
32*42*5 40Meters/Circle 115*127*6 10Meter/Circle
34*42*4 40Meters/Circle 127*139*6 10Meter/Circle
34*44*5 40Meters/Circle 140*152*6 10Meter/Circle
38*48*5 40Meters/Circle 152*164*6 10Meter/Circle
40*48*4 40Meters/Circle 180*194*7 10Meter/Circle
40*49*4.5 40Meters/Circle 219*231*6 10Meter/Circle
40*50*5   For more dimension,can be customized (ID6mm-ID600).
