TPU Layflat Umbilical Slurry Hose is one type of super heavy-duty through-the-weave polyurethane (PU/TPU) covered hose. Manureflow hoses shall be made from 100% high tenacity synthetic yarn circular woven and completely, totally embedded in the PU compound, excellent protected against mechanical damage, forming a single homogenous construction without the use of any glues or adhesives of any type.
Construction:
Tube: Thermoplastic polyurethane(TPU)
Cover: Thermoplastic polyurethane(TPU)
Reinforcement: High Strength Circular Woven Polyester Or Polyamide
Accessories:
Germany type Storz,American Bolt on style,Victaulic,Camlock is Optional according to the requirement.
Packing:
Generally the packing would be pallet or steel hose holder,Customized packing is also supported.
Application:

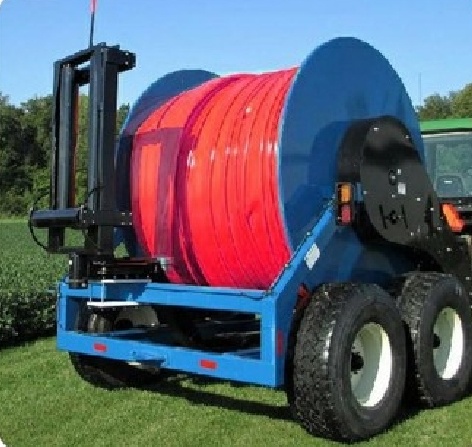

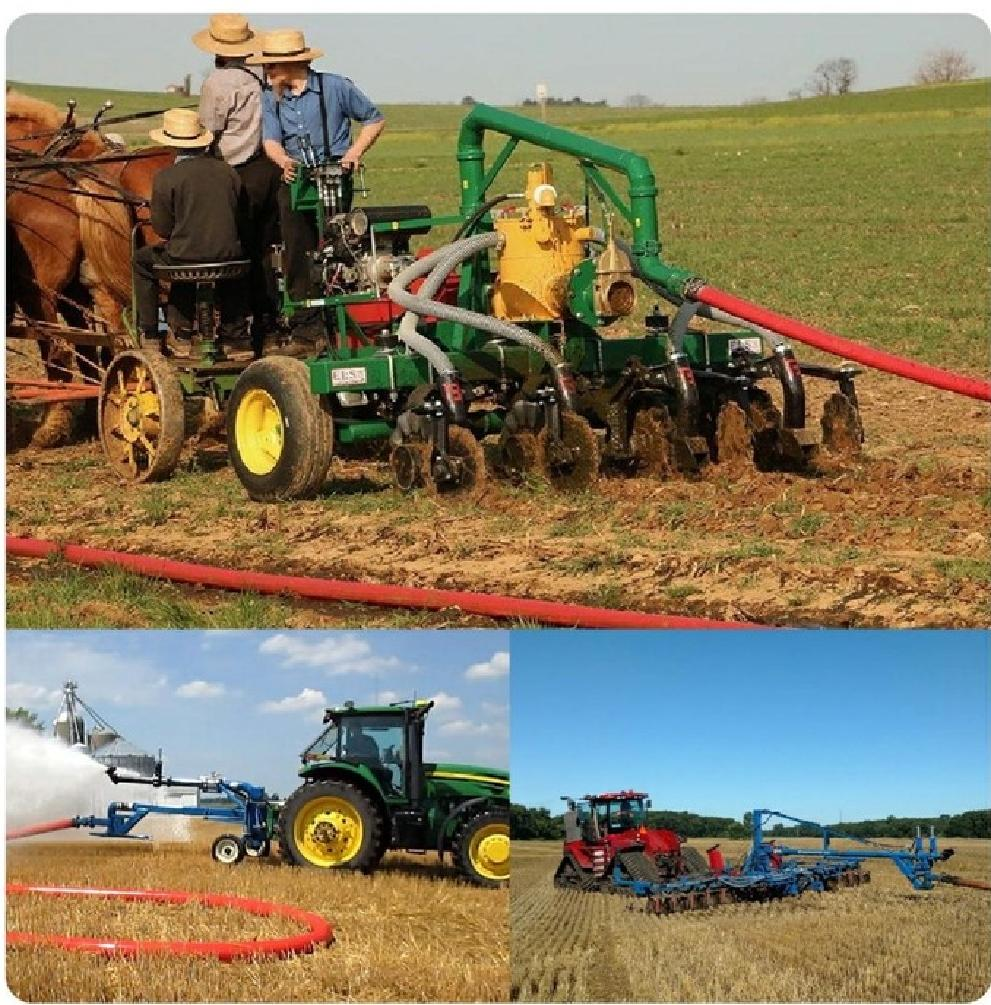

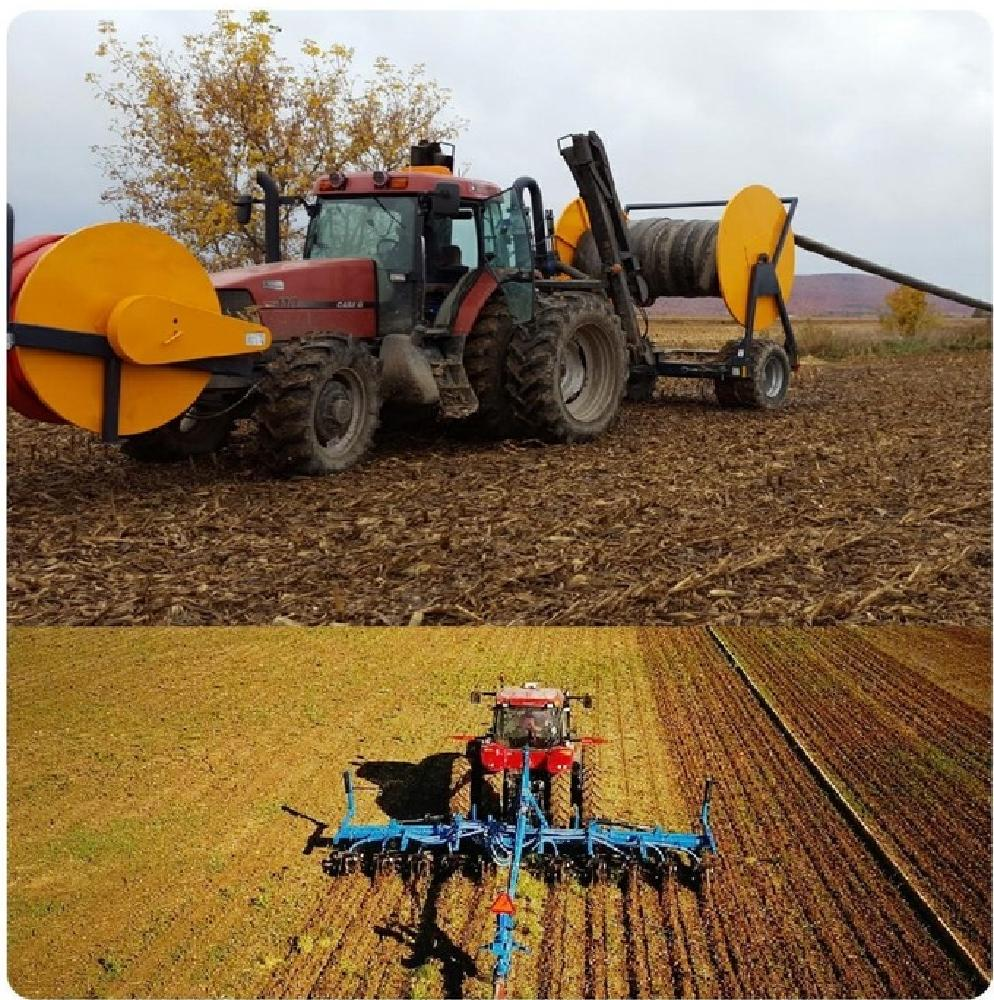

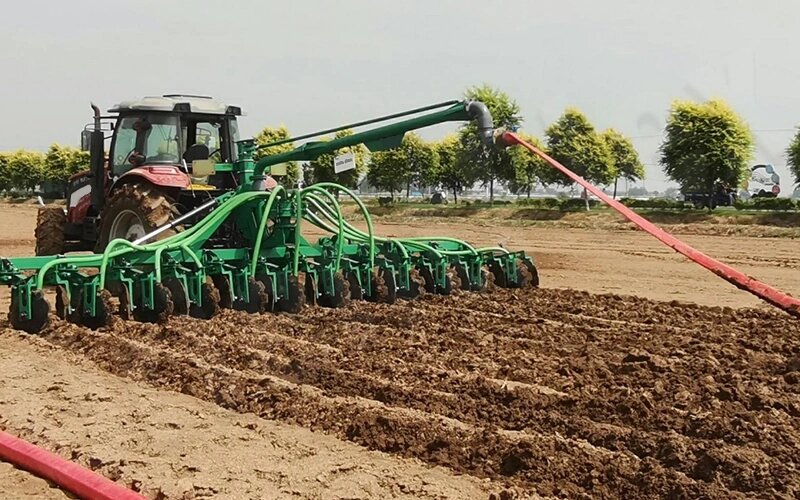

TPU drag hose is designed for distribution of slurry and manure as fertilizer,Delivery of water in self-propelled machinesfor irrigation,
As for the superior abrasion resistrance,the TPU drag hose is designed for distribution of slurry and manure as fertilizer,
delivery of water in self-propelled machines for irrigation.
Characteristic:
Extra abrasion resistance,oil resistance
Acid and alkali resistance, corrosion resistance
Cold resistance, small flow resistance
Low coil volume for easy handling
Flexible in all weather conditions from -50 to +80 deg C
Services:
Standard color black,other colors on request
Individual marking available
Binding with international couplings available on request
Other diameters on request
Standard lengths 100m and 200m
Temperature: -55ºC(-131ºF) to 80ºC(+176ºF)
|
ID |
Wall Thickness |
Weight |
Working Pressure |
Bursting Pressure |
|||||
|
Inch |
mm |
Inch |
mm |
Ibs/ft |
Kg/m |
Psi |
Bar |
Psi |
|
|
4 |
103+2.0 |
0.14 |
3.6 |
0.94 |
1.4 |
190 |
13 |
560 |
39 |
|
5 |
128+2.5 |
0.16 |
4 |
1.21 |
1.8 |
190 |
13 |
560 |
39 |
|
5.5 |
141+2.5 |
0.16 |
4 |
1.41 |
2.1 |
150 |
10 |
450 |
30 |
|
6 |
153+2.5 |
0.17 |
4.2 |
1.48 |
2.4 |
150 |
10 |
450 |
30 |
|
7 |
178+3.0 |
0.17 |
4.5 |
1.92 |
2.86 |
135 |
9 |
405 |
28 |
