TPU Layflat Umbilical Slurry Hose pipe

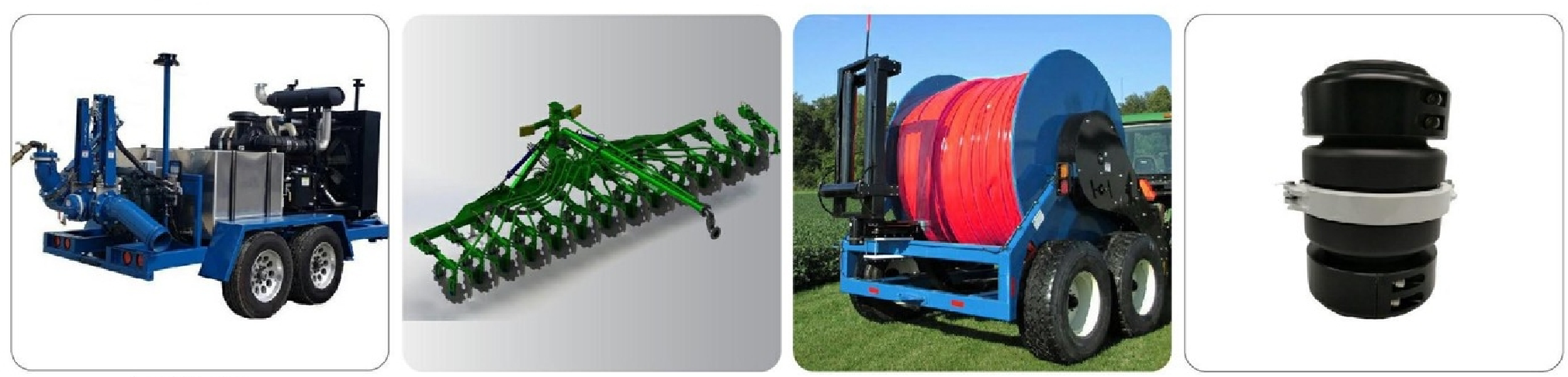

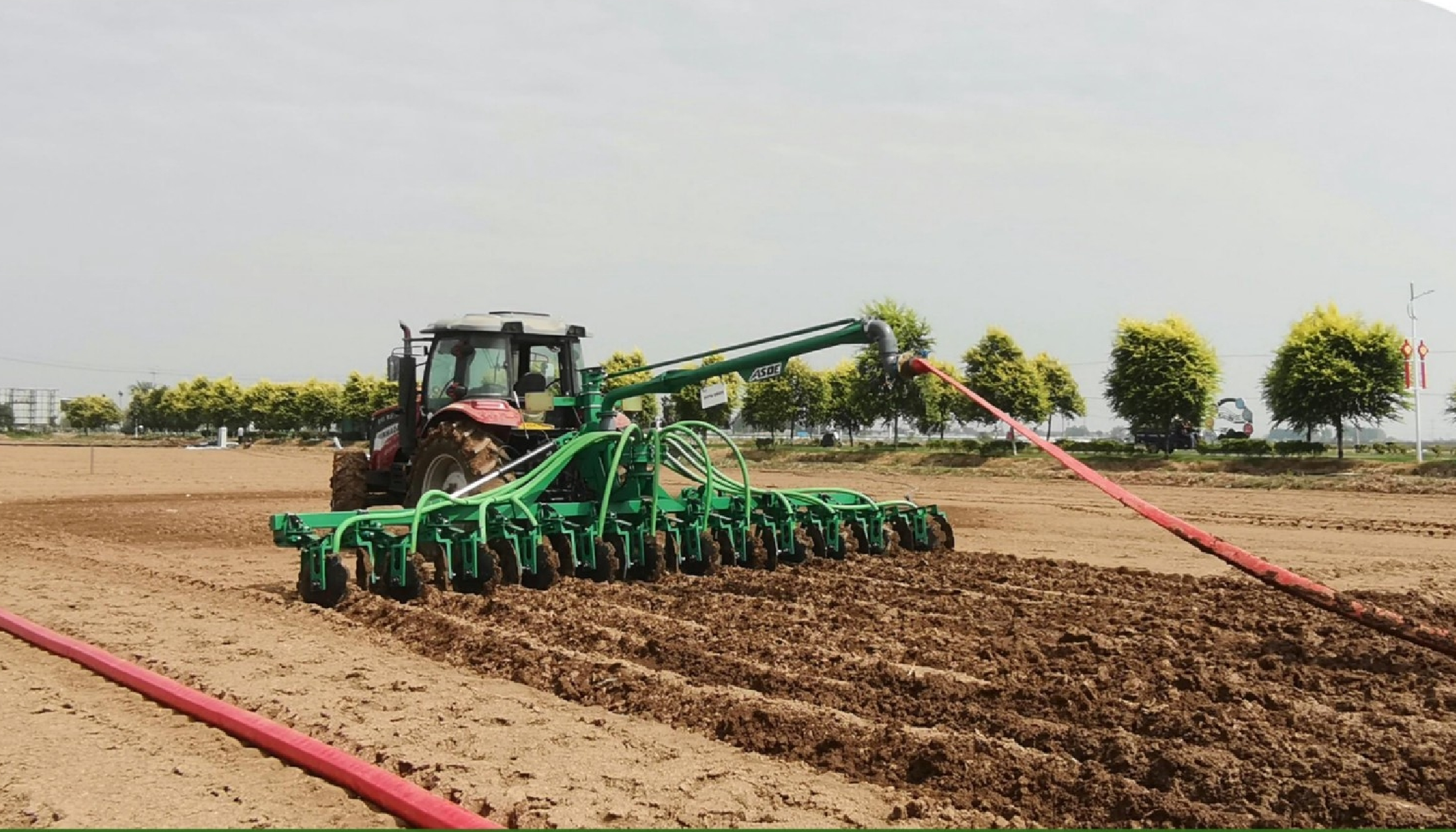

The umbilical cord equipment system for returning liquid manure to farmland efficiently pumps the manure from the oxidation pond over long distances. The manure flows through the manure pump, conveying hose, and dragging hose, and finally is accurately and quantitatively returned to the farmland through a liquid manure applicator suspended on a tractor.

TPU Layflat Umbilical Slurry Hose pipe
TPU Layflat Umbilical Slurry Hose


TPU Layflat Umbilical Slurry Hose is one type of super heavy-duty through-the-weave polyurethane (PU/TPU) covered hose. Manureflow hoses shall be made from 100% high tenacity synthetic yarn circular woven and completely, totally embedded in the PU compound, excellent protected against mechanical damage, forming a single homogenous construction without the use of any glues or adhesives of any type.

Application: Suitable for use and recommended for manure tranfer as drag hose etc.
Inner tube and cover: Smooth PU cover and tube.
Reinforcement: Circular woven polyester jacket
Operating Temperature Range: From -60° F to 176° F(-50° C to 80° C)
Standard Color: Red, Olive green, other colors available per request
Standard Length: 660ft/200m; 990ft/300m, 1320ft/400m, other lengths available per request;

Couplings: Aluminum LDHC Agro couplings, etc.

TPU layflat slurry conveying hose pipe：

ID
Wall Thickness
Weight
Working Pressure
Bursting Pressure
Inch
mm
Inch
mm
lbs/ft
  kg/m
PSI
Bar
PSI
Bar
6
154+2.5
0.17
4.2
1.56
2.33
200
14
600
42
7
178+3.0
0.17
4.2
1.87
2.79
215
15
645
45
8
204+3.0
0.175
4.5
2.3
3.43
215
15
645
45
10
254+3.0
0.18
4.6
3.08
4.59
200
14
600
42

TPU layflat slurry drag hose pipe：


ID
Wall Thickness
Weight
Working Pressure
Bursting Pressure
Inch
mm
Inch
mm
lbs/ft
  kg/m
PSI
Bar
PSI
Bar
4
103+2.0
0.14
3.6
0.94
1.4
190
13
560
39
5
128+2.5
0.16
4
1.21
1.8
190
13
560
39
5.5
141+2.5
0.16
4
1.41
2.1
150
10
450
30
6
153+2.5
0.17
4.2
1.48
2.4
150
10
450
30
7
178+3.0
0.17
4.4
1.92
2.86
135
9
405
28
